Pre-Requisites:

1.       Copy Media to application server:  9.0.0.3-ITX-wsdtxis-linux.tar

2.       Ensure Korn Shell is installed. Need root access

a.       yum install ksh

3.       Install underlying B2Bi compatible nodes

4.       Validate IBM System Requirements for ITX



WTX Installation:

1.       Login with root access (optional in ITX V9.0.0 and up)

2.       Untar 9.0.0.3-ITX-wsdtxis-linux.tar

a.       tar -xvf 9.0.0.3-ITX-wsdtxis-linux.tar

3.       Navigate to extraction directory and Execute ./DTXINST

a.       Enter Temporary Directory: /tmp (default)

b.       Installation Directory: /opt/ibm/wsdtx  (default)

c.       Select components: all

d.       If logged in as root, will be prompted for user that will own wtx (should be same as SI)



Full Backup:

1.        Take full backup of Sterling Integrator File system and Database



 Sterling Integrator Configuration:   XXX – wtx install directory YYY – SI install directory

1.       Login with sterling integrator system account

2.       Stop SI Node

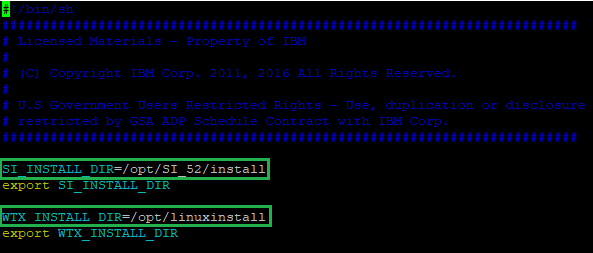

3.       Modify script XXX/dtx4si/InstallWTXService.sh and update the SI install directory and wtx install directory accordingly to fit your environment







4.       Run XXX/dtx4si/InstallWTXService.sh

5.       When Step 4 is complete, Start SI Node

6.       Create new service  WTXMapService

7.       Repeat Step 2 thru 6 for each Secondary Node
